DESIGN : CAINE HEINTZMAN / 2013

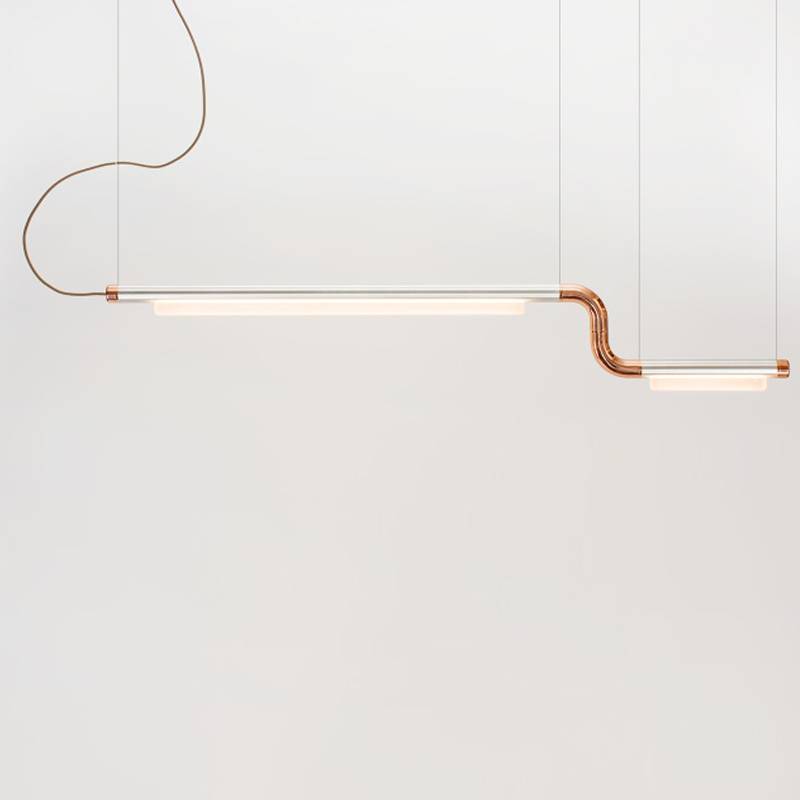

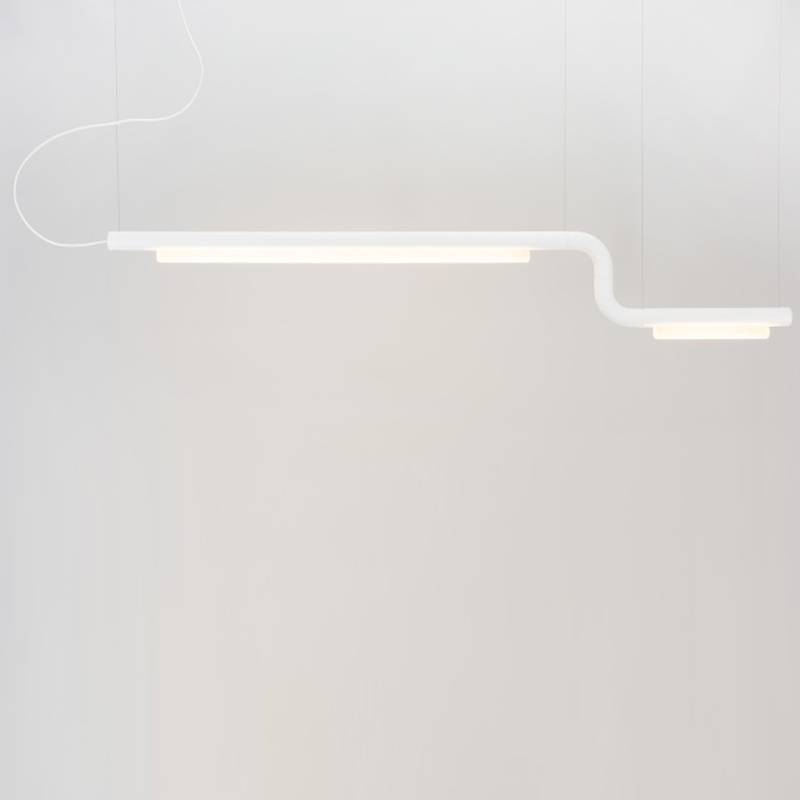

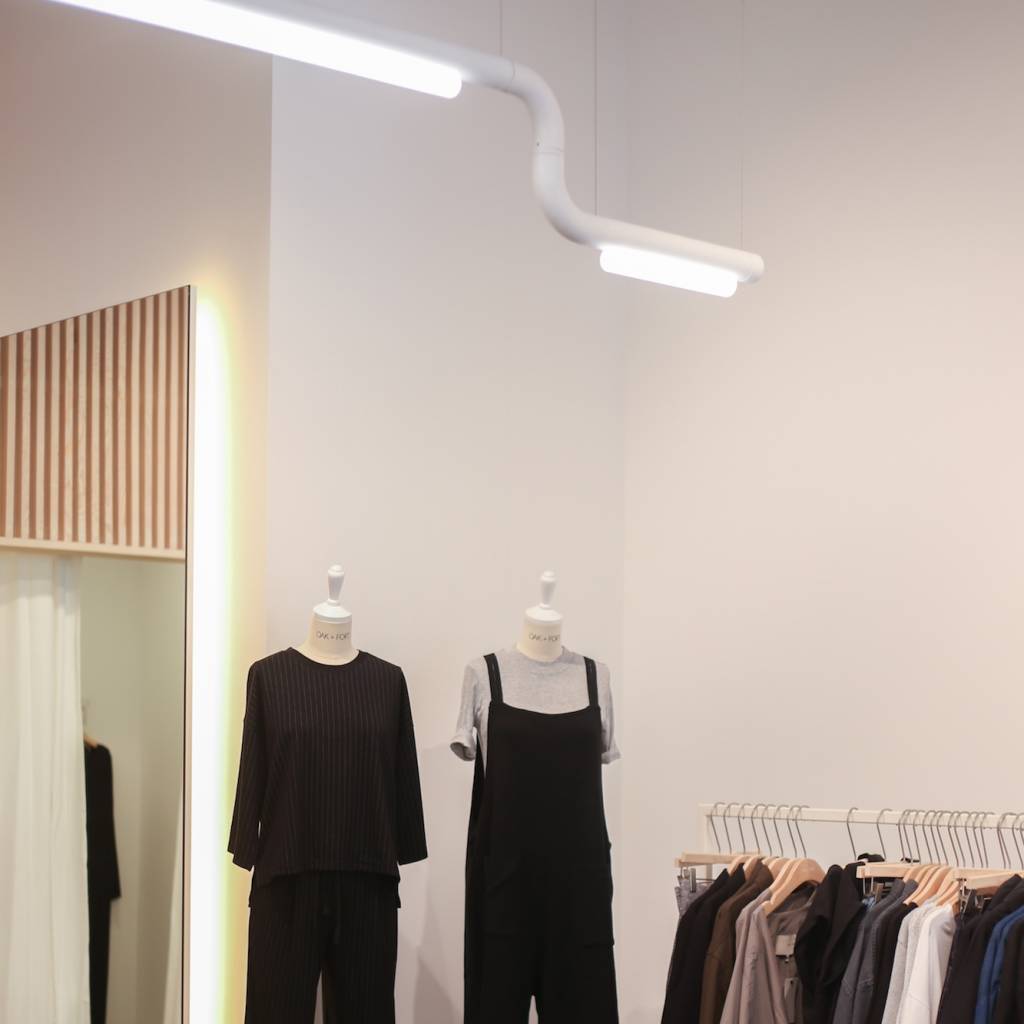

The PIPELINE family is a linear LED pendant system which facilitates virtually unlimited potential in the composition of its components.
Individual segments (Pipeline 40 or 125) and recommended combinations (Pipeline CM2, CM3, CM4, and CM5) are convenient ‘off the shelf’ lighting solutions, however customization for this product is encouraged for projects with unique lighting needs.

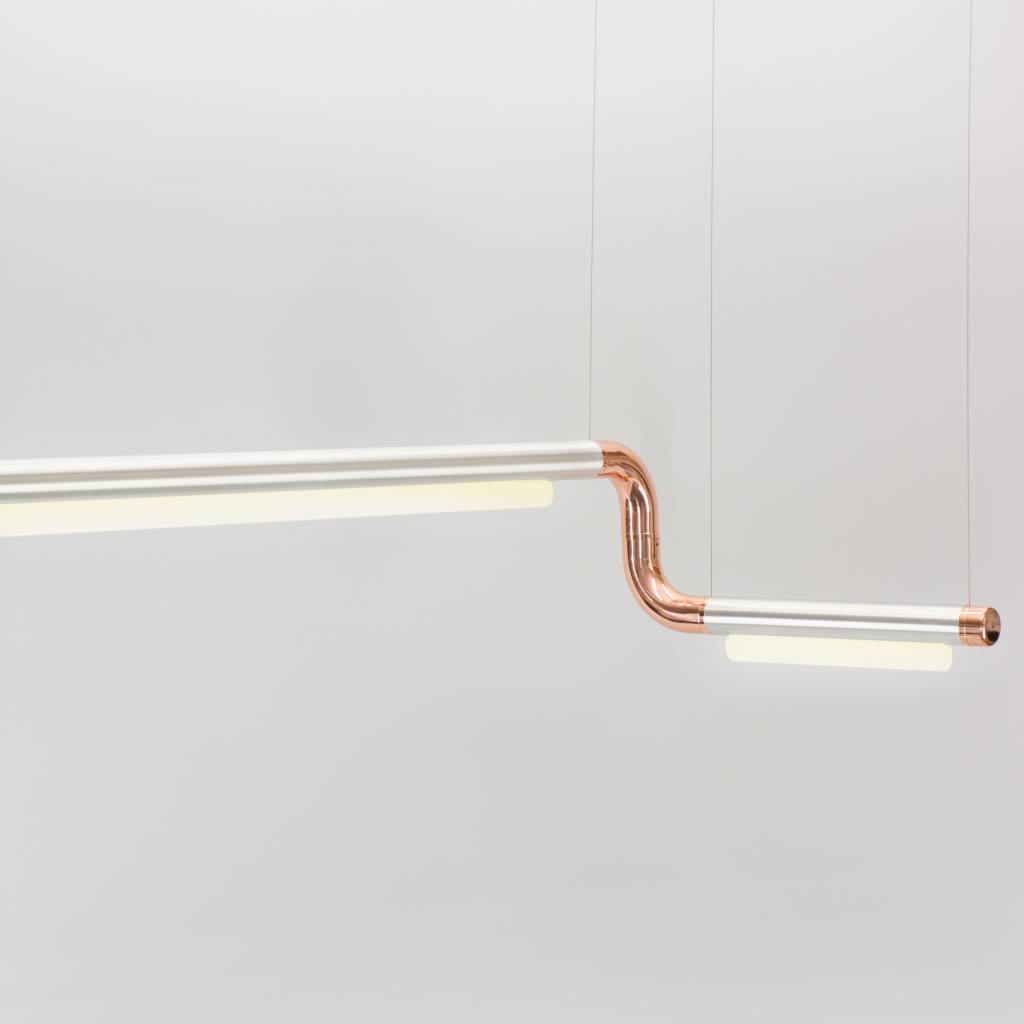

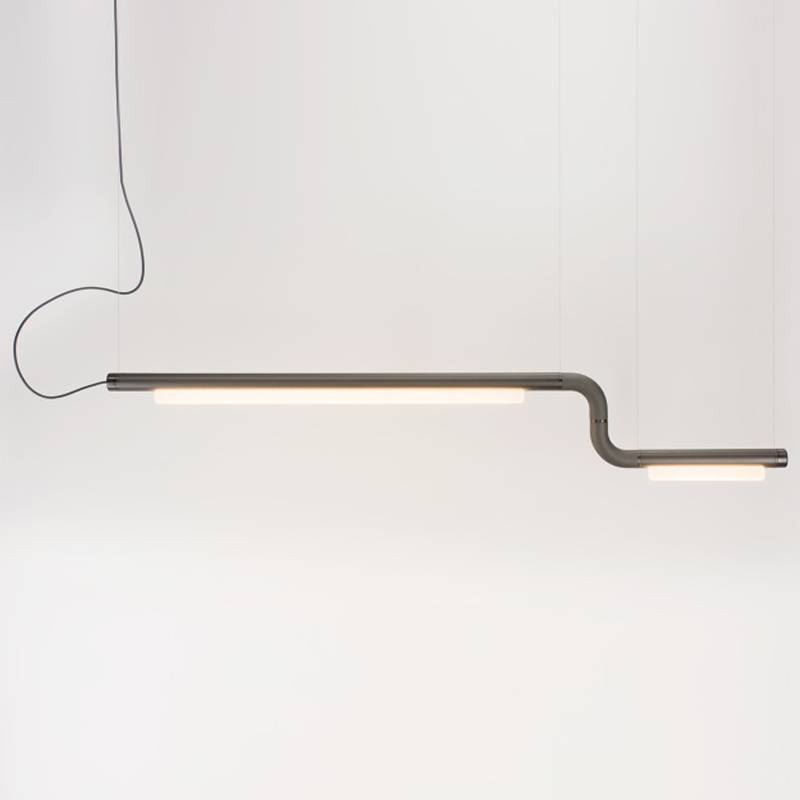

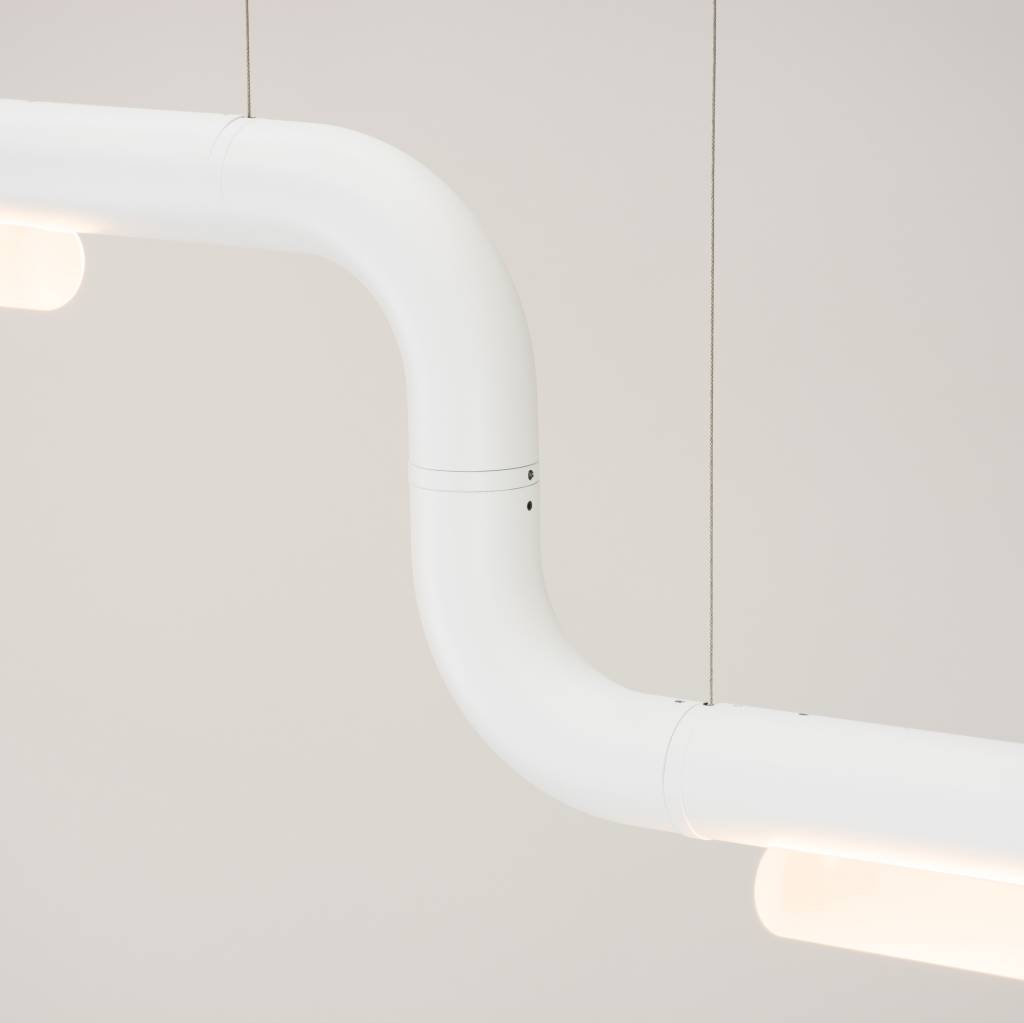

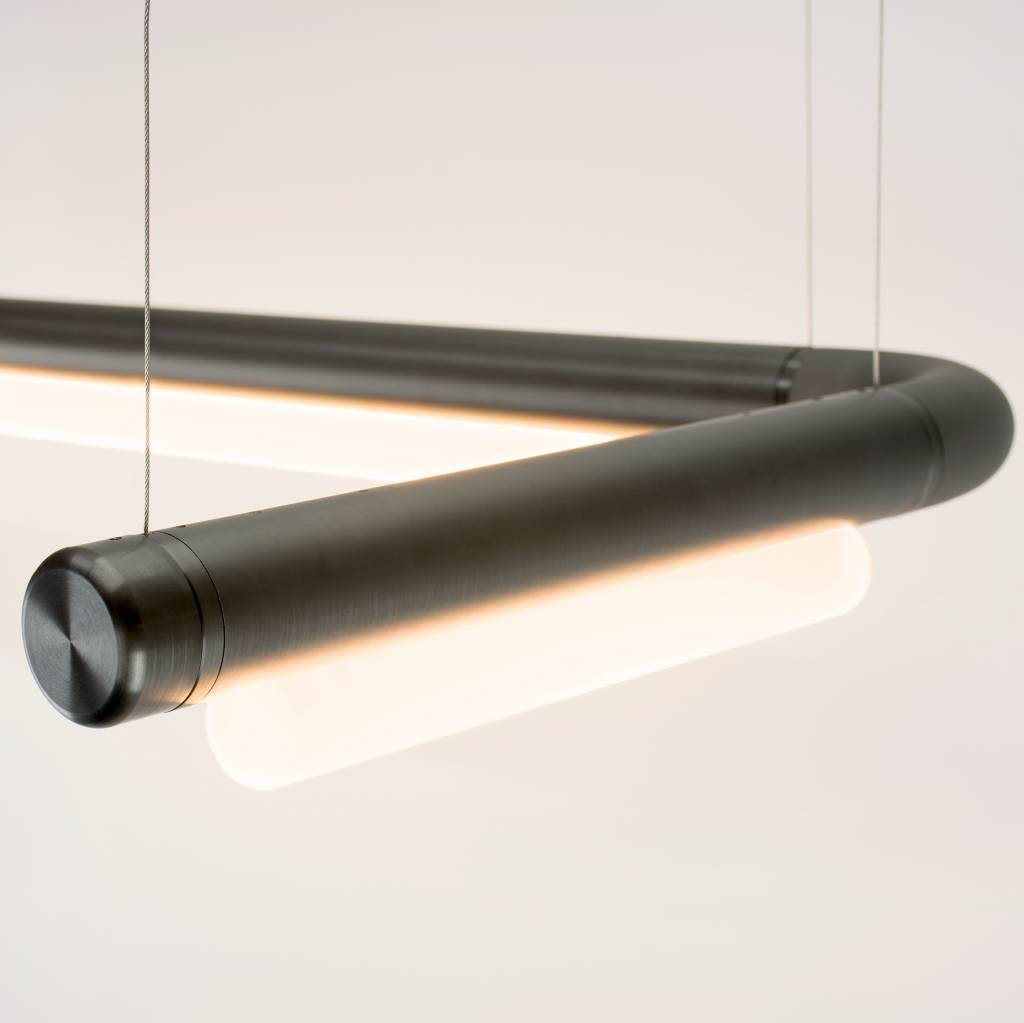

The modular and customizable character of the PIPELINE is based on a set of linear sections and a 90º elbow which mate with a universal connecting collar allowing multiple segments to be joined together. This enables the user to choose the orientation, direction and overall layout of the light fixture in relation to a space.
183 x 29 x 5 cm / 72.5” x 11.5 “ x 2”
FACTORY DROP LENGTH
243 cm / 96“
*custom length available upon request.
Polish / Copper
27W linear LED
70 000 hrs lifetime
2700K / 4100K
120V input 60Hz (*220V & 277V upon request)
Low Voltage Magnetic Dimmer
Integral 24V power supply included (located in Canopy)
*0-10 Electronic Dimming Available Upon Request
*Other Colour Temperatures Available Upon Request
